Subnetting Walk-through

Subnetting is the practice of dividing a network into smaller subnetworks.

The CCNA heavily tests you on your ability to quickly understand subnets and navigate routing tables. It doesn't do this with questions like you'll find on subnetting.org, but often as part of another question whose primary subject matter is something else.

To put it simply, being able to quickly understand the scope of a network with either a dotted-decimal or slash-notation network or subnet mask is the most critical skill needed for the CCNA. You are not given time to manually subnet every question, and most questions will involve subnetting in some form or another.

Below, we'll discuss what I found to be most helpful while studying and taking the test, and what you can do to get better at it.

NOTE: All the examples below are for IPv4, because that's where it's most necessary for the CCNA. You can extend the principles to IPv6, and it's easier to learn the differences if you already have a firm grasp of IPv4 subnetting.

ALSO NOTE: This article will focus on the practical application of subnetting, and won't go into the overarching governing ideas behind them, like VLSM or RFC 1918.

IP Networks 101

In order to fully understand the following methods, you need to understand how IP addresses and network masks are composed at the bit-level.

If you already know what I mean when I say /13 has a bit value of 8, you can click here to skip ahead to the bottom.

You can also go watch Jeremy's IT Lab, which will absolutely do a better and more thorough job of explaining this. I won't be offended.

Bits and Octets

IPv4 addresses are 32-bit strings that are divided into four 8-bit sections called octets. Addresses are read from left to right, with the left-most bits carrying higher values.

Each octet can represent any number between 0 and 255, for 256 total possible values. Each bit represents a value, and whether the bit is set to 1 or 0 indicates if the value is added to the total. The sum total of all bits flipped to 1 are counted.^[1]

DISCLAIMER: I don't think most people name the bit positions like this, but I think it's helpful. If you prefer to do 1-8 or 8-1, that's totally fine, so long as you're consistent.

You'll notice there's a pattern in the bit value; each bit is worth 2^x, where x is the bit position. This will be helpful later, but for now, write mem this to your NVRAM and keep going.^[2]

Consider the following examples of octets and their bit values.

Example 1 - 10101010

Example 2 - 11110000

Composing an IP Address

When you string four octets together, you get an IP address.

Bits and Octets Recap

To summarize, each bit has a bit value that is equal to 2^(bit position). Octets are composed of 8 bits, and four octets make an IPv4 address. Onward!

Network Bits, Host Bits, and My First Subnet

Each IP address is composed of two parts; the network bits on the left and the host bits on the right. The bits in each part are contiguous; you will never have network bits and host bits intermingling.

The network bits define the network, which is the Broadcast domain within which hosts can communicate freely. The host bits identify unique addresses on that network.

Each network has a network address (the first IP address in the subnet) which identifies the network and is used for routing purposes, and a broadcast address (the last IP address in the subnet) that is used to forward packets too all other hosts on the network. Think of the network address like the name of the town or neighborhood, and the broadcast address like the town crier or a really gossipy neighbor. All of the other addresses are known as valid host addresses or valid IP addresses, because they represent actual network endpoints.

The network bits are identified using a network mask (or netmask or subnet mask), which "masks" the network bits by setting each network bit to 1. Every bit in an IP address that is masked by a 1 in its netmask is a network bit. Network masks can be written either in the long-form dotted-decimal format, which represents the mask with each octet's value, or the short-form slash-notation format, which identifies the number of network bits in the netmask.

I've always called all kinds of network masks subnet masks, regardless of context. This is probably not correct, and I may update this article later to be more correct, but right now I'm fine with it.

For example, let's look at the IP address from earlier; 172.18.240.33, which is the decimal representation of the binary 10101100 00010010 11110000 0010001.

172.18.240.33 with a network mask of 255.255.0.0 or /16

10101100 00010010 11110000 0010001
11111111 11111111 00000000 0000000

With this netmask, the first 16 bits are masked with 1s. This means that the remaining 16 bits (11110000 0010001) are host bits.

• 172.18.0.0 is the network address
• 172.18.0.1 - 172.18.255.254 are valid host addresses
• 172.18.255.255 is the broadcast address

172.18.240.33 with a network mask of 255.255.240.0 or /20

10101100 00010010 11110000 0010001
11111111 11111111 11110000 0000000

With this subnet mask, the first 20 bits are masked with 1s. This means that the remaining 12 bits (0000 0010001) are host bits.

• 172.18.240.0 is the network address
• 172.18.240.1 - 172.18.255.254 are valid host addresses
• 172.18.255.255 is the broadcast address.

172.18.240.33 with a network mask of 255.255.255.224 or /27

10101100 00010010 11110000 0010001
11111111 11111111 11111111 1110000

With this subnet mask, the first 27 bits are masked with 1s. This means that the remaining 5 bits (0001) are host bits.

• 172.18.240.32 is the network address
• 172.18.240.33 - 172.18.240.62 are valid host addresses
• 172.18.240.63 is the broadcast address.

There are MANY great IP calculators out there, but this one is pretty neat, as it clearly shows the binary values behind the addresses; IP Calculator / IP Subnetting

Network Bits, Host Bits, and My First Subnet Recap

• IP addresses are divided into two contiguous parts; network bits and host bits
  • Network bits define the network, or Broadcast domain
  • Host bits define the unique addresses on that network
• Each network has a network address and a broadcast address, and valid host addresses
  • Network addresses are the very first address in a network range and identify the network
  • Broadcast addresses are the very last address in a network range and are used to forward packets to all hosts
  • Valid host addresses or valid addresses are all the IP addresses in between that can be assigned to hosts
• Network or Subnet Masks literally "mask" the network bits in an IP address, and are commonly represented in either dotted-decimal or slash notation
  • Dotted-decimal notation identifies the bit value of the subnet mask of each octet
  • Slash notation identifies the number of bits in the subnet mask

Proper Subnetting

What does it even mean "to subnet"? Subnetting is defined by SolarWinds as "the process of creating a subnetwork (also known as a subnet) within a network." SolarWinds also has a pretty good IP and subnet calculator. Thank you, SolarWinds, for all your hard work.

When we're talking about subnetting in relation to the CCNA, we usually mean identifying the number of valid hosts and networks given some parameters.
This can be framed by asking you to:

• identify network ranges
• divide a network into subnets to support business needs
• identify which network an IP address belongs to

To do any of that, you need to be able to identify the number of valid hosts and the number of subnetworks for any given network.

Dividing Networks

Up to this point, we've been discussing single subnets, and that's mostly what you'll be dealing with. However, you may be asked to calculate how many subnets can exist in a given network.

But before we get into dividing networks, we need to talk about Private IP Address Ranges and IPv4 Address Classes.

IPv4 Address Classes are (mostly) Obsolete
No one uses classful networks anymore. The only thing that's relevant about them at this point is the idea of "Private" vs. "Public" IP ranges (defined by RFC 1918), and those are quite important.

• Public IPv4 addresses are publicly routable
  • Any device on the internet can connect to any other device with a public IP (theoretically) by entering its IP.
  • These IP addresses are unique on the internet, and no two devices can have the same public IP
• Private IPv4 addresses are NOT publicly routable (big surprise)
  • Through the magic of NAT, they can connect to the Internet, but they are otherwise meant for use privately in smaller networks
    • For example, your home computer might have 192.168.1.10, and mine might also have 192.168.1.10, and that's not a problem.

But if you open Command Prompt (or Terminal) and type in ipconfig (or ifconfig), you will notice that your home network mask is probably not /8 (255.0.0.0) or /16 (255.255.0.0); it's probably /24 (255.255.255.0). This is because you're connected to a subnet of the private IP range, automatically configured by your router.

Remember that thing I asked you to commit to memory earlier? Here's a quick reminder:
Each bit is worth 2^x where "x" is the bit position in the octet.

Just like how we can calculate the bit-value of an octet, we can calculate the number of available networks with 2^x, where x represents the number of non-default network (or subnet) bits.

What I call non-default network bits are called subnet bits by others (like Professor Messer), or even just network bits (which is what I learned, and find confusing). I'm going to use default network bits/default network mask to represent the overarching network, and non-default network bits for now to represent the subnet.
I might go back later and edit the article to use the same language as Professor Messer; I should do it now, but I've written over 3,000 words today and I'm tired.

You can also use subnetting.org for practice, but in the meantime, let's go through some examples.

just a little reminder

Example 1

Let's assume your computer's IP is 192.168.1.10; how would we figure out how many subnets are available to you?

The default network mask for the Class C Private Network 192.168.0.0 is /16 (or 255.255.0.0)
Your home network has a network address of 192.168.1.0 and a subnet mask of /24 (or 255.255.255.0)

This means that there are 8 non-default network bits in your home network.
2^8=255

There are 255 available subnets for the default network 192.168.0.0 given a /24 subnet mask.

You could have networks with addresses of 192.168.1.0, 192.168.2.0, 192.168.255.0, etc.

Let's do another.

Example 2

Let's assume that your computer's IP is 172.30.1.25

The default network mask for the Class B Private Network 172.16.0.0 is /12 (or 255.240.0.0)
Your home network has a network address of 172.30.1.0 and a subnet mask of /24 (or 255.255.255.0)

This means that there are 12 non-default network bits in your home network.
2^12=4,096

There are 4,096 available subnets for the default network 172.16.0.0 given a /24 subnet mask.

You would have... lots of networks. Just a whole bunch. I mean, literally over 4,000.

One more time

Example 3

Let's say you administer a network for a regional office of a large company. You've been asked to divide the 10.130.0.0/16 network for teams in Engineering, Sales, Marketing, Business Operations, and System Administration. For the purposes of this exercise, all networks should be the same size with the most valid host addresses available.

The default network mask for the given network 10.130.0.0 is /16 (or 255.240.0.0)
You want to divide the network into at least 5 equal networks.

Remember that thing about 2^x? You can only equally divide a network into exponents of 2 (1, 2, 4, 8, 16, 32, etc.)

You can't divide a network equally into 5 pieces. If we were dealing with a large number, we could run the calculations; however, since you know you need more than 4 networks and fewer than 8, you will need to divide the network into 8 subnets.
8=2^3
This means you will need 3 non-default network bits to divide the network evenly into 8 subnets.
16 network bits + 3 subnet bits = /19 subnet mask

If we use the /19 (255.255.224.0) subnet mask, we can divide 10.130.0.0 into at least 5 equal subnets (for 8 total equal subnets).

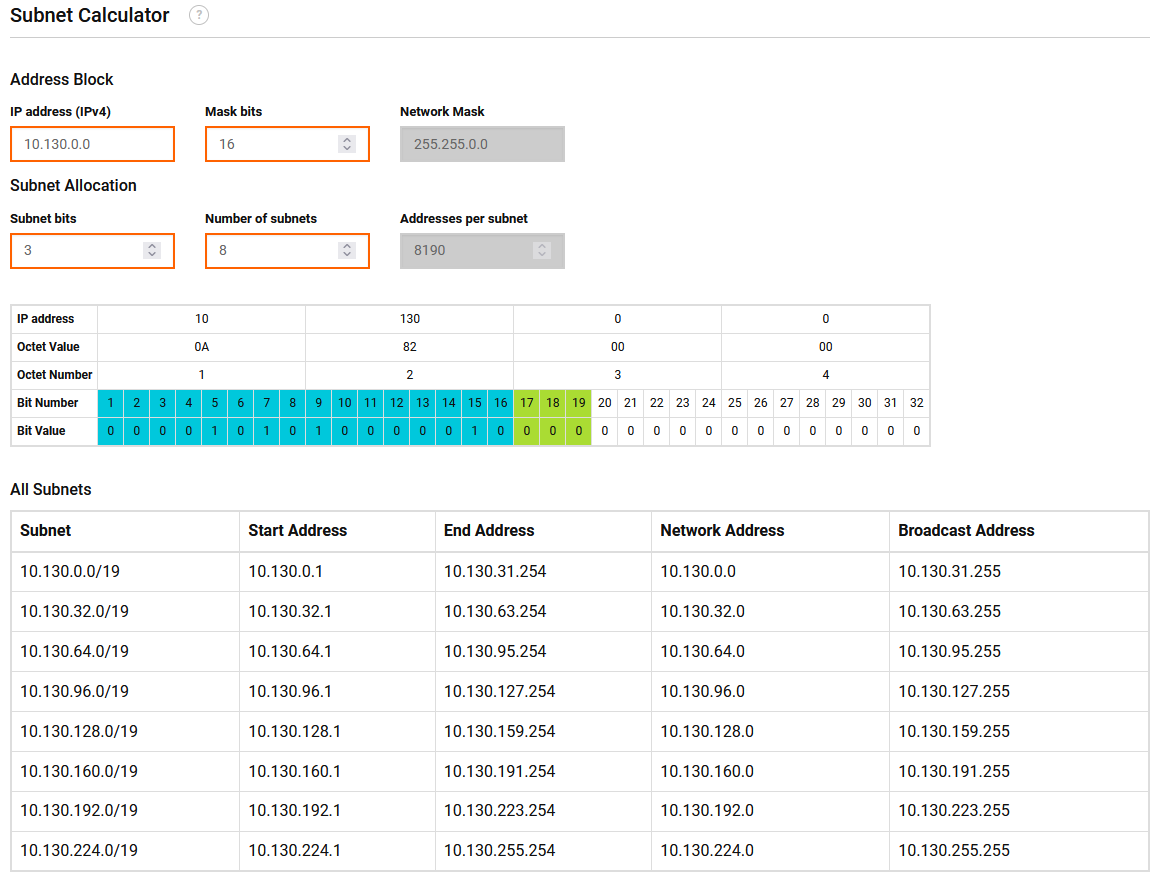

We can check our work by heading over the SolarWinds network calculator and entering our values:

Looking at this output, you might have noticed that each network will have 8190 available host addresses. While this network is unlikely to run out of host addresses, what if the number of hosts was important? What if we needed to figure out how many hosts there are in a network?

My dear, astute, intelligent, physically attractive reader, let's keep going and see how to calculate the number of hosts in a subnet.

Calculating Hosts

Calculating hosts is almost identical to calculating networks, just in the opposite direction, forgetting about Public/Private IP networks, and taking into account the network address and broadcast address.

Ok, maybe not identical, but pretty close!

(2^(host bits))-2 = number of valid host addresses

A /16 network has 16 host bits; if we calculate (2^16) - 2 (for the Network/Broadcast addresses), we get 65,643 valid host addresses.

A /26 network has 6 host bits; so, (2^6)-2 = 62.

Now you've looked ahead and saw that a /32 network has 0 host bits; what does it MEAN?!? IT means it's the only "host" on that network! In reality, it's typically only used for loopback interfaces, and you'll probably see it on routing tables.

Note on /31 networks
If you've done the calculations, you know that a /32 network is a single host, and a /30 network only supports two valid IP addresses, but what about /31 networks? There are two IP addresses available, but they should both be taken by the network address and the broadcast address, right? Well, /31 networks have been defined in RFC 3021 - Using 31-Bit Prefixes on IPv4 Point-to-Point Links. Not all networking gear handles /31 networks correctly, and you will probably not be asked about /31 networks on the CCNA.

You can also use subnetting.org for practice, but in the meantime, let's do an exercise.

Example 1

Let's say you administer a network for a small non-profit. You've been asked to divide the 192.168.10.0/24 network for teams in Research, which needs 22 valid host addresses, Community Outreach, which needs 53, Business Operations, which needs 13, and Lizard People, which needs 3.

Like when dividing a network, each subnet must be split into one of 2's exponents.

The first step is to organize your networks by order most hosts to fewest, and go from there.
Community Outreach: 53
Research: 22
Business Operations: 13
Lizard People: 3

Next, you can run through the (2^x)-2 calculations to find which subnets can carry the correct number of hosts. I find it's helpful to clearly label the information we're looking for in each subnet.

Community Outreach

• Minimum hosts: 53
• Subnet Slash Notation: /26
• How many total addresses? 64
• How many valid hosts? 62
• What's the network address? 192.168.10.0
• What's the broadcast address? 192.168.10.63
  • Remember, this is the last address in subnet with 64 total address, but starts at 0
    Research
• Minimum hosts: 22
• Subnet Slash Notation: /27
• How many total addresses? 32
• How many valid hosts? 30
• What's the network address? 192.168.10.64
• What's the broadcast address? 192.168.10.95
  • Remember that counting starts at .64, so the broadcast address is one less than you think
    Business Operations
• Minimum hosts: 13
• Subnet Slash Notation: /28
• How many total addresses? 16
• How many valid hosts? 14
• What's the network address? 192.168.10.96
• What's the broadcast address? 192.168.10.111
  Lizard People
• Minimum hosts: 3
• Subnet Slash Notation: /29
• How many total addresses? 8
• How many valid hosts? 6
  • This is ideal for when the Lizard People divide through mitosis
• What's the network address? 192.168.10.112
• What's the broadcast address? 192.168.10.119

And you're all set! Each of the following groups will get these networks:
Community Outreach: 192.168.10.0/26 (255.255.255.192)
Research: 192.168.10.64/27 (255.255.255.224)
Business Operations: 192.168.10.96/28 (255.255.255.240)
Lizard People: 192.168.10.112/29 (255.255.255.248)

Subnetting Recap

Memorize the Private IP ranges.

Calculate the number of subnets available in a given network
2^(subnet bits) = Number of available, equally-sized networks

Calculate the number of valid host addresses in a given network
(2^(host bits))-2 = Number of valid host address

• You subtract 2 from the total to account for the network address and broadcast address

Ok, that about covers the basics; let's get on to how this applies for the CCNA

Subnetting Under Pressure

On the CCNA, you will have between 90 and 120 questions, and 120 minutes to answer them (New CCNA exam - 200-301). I can feel your existential dread; how am I supposed to calculate all that crap when I have just over a minute to answer each question?

If you've read through the above guide or studied with Jeremy's IT lab, then congratulations! You've laid the groundwork. Now it's time to build a... house... network? The analogy ran away from me.

Anyway, there's a shortcut, called...

The Magic Number

Messer goes into great detail, but the basic idea is that octets increment by the bit-value of the last bit in the subnet mask.

This means that we can quickly comprehend the size of a network just by knowing the subnet mask alone. 🤯

Let's review the bit values in an octet:

The bit value directly correlates with the size of the network in that octet.

For example, the subnet mask /19 (255.255.224.0) falls on the 5th bit, which has a value of 32. This means that whatever network is being subnetted will have a range of (or will increment by) 32.

It might be easier for you to think of bit position as 1 to 8 from left to right, and that's perfectly alright.
The above example would then fall on the 3rd bit with a value of 32.
For consistency, I will use the bit-positions I reference above, but hopefully this doesn't just make it more confusing - let me know.

If you needed to subnet the network 192.168.0.0/16 into /19 subnets, it's dead simple; it increments by 32
192.168.0.0 - 192.168.31.255
192.168.32.0 - 192.168.63.255
192.168.64.0 - 192.168.95.255
... and so on.

Let's take this a step further.

Start by setting mental anchors; complete octets come naturally (/8, /16, and /24).
I found it helpful to pick midpoints as well because I tend to get a little lost in the middle. I went with /4, /12, /20, and /28, because they fall on 4th bit in each octet leaving an even dotted-decimal value of 240, and a bit-value of 16.

I write these slash-subnets out, followed by their dotted-decimal equivalent, followed by the bit value. Writing it as a list can help you to visualize the information, making it easier to recall and identify patterns.

4,240,16
8,255,1
12,240,16
16,255,1
20,240,16
24,255,1
28,240,16

As a neurodivergent person, I also found it helpful at the start of the exam to write the whole list on the whiteboard. This gave me something to lean on near the end of the exam when every second counts.

4,240,18
5,248,8
6,252,4
7,254,2
8,255,1
9,128,128
10,192,64
etc.

If you're unsure which type of list you'll need, practice subnetting at subnetting.org, and each time, write out the list of your choice as reference.
This will help you memorize it, and give you information on how often you refer to it, where you get caught up, etc., and you can adjust it as needed.

As we discussed earlier, the bit value is the magic number to quickly comprehending the scope of a network. The first octet in a /6 network increments by 4; the second in a /10 network increments by 64, and so on.

However, it's almost always faster to just know the answer instead of having to look it up. Therefore, I've included a link below to Anki flashcards I created that specifically to reinforce your translation from dotted-decimal to slash-notation and back again.
There are also cards that give you a slash-notation subnet mask and ask you to say which octet increments and by how much. I hope they're as helpful to you as they were to me.

As you memorize this information, go to subnetting.org and do rapid-fire practice. You might have used it to practice the proper calculation methods, but it's more realistic to try to complete as many as you can within a short time limit. Think of it less as a chore, and more like a game (I find it exercises similar brain-muscles as sudoku^[3]). At least, that's what I told myself.

Study Prep Recap

The bit value of the last bit in a subnet mask indicates the IP range of the subnet's octet

• For example, 10.20.32.0 /20 has a final subnet bit bit-value of 16, and so the third octet will increment by 16
  • 10.20.32.0 - 10.20.47.255, 10.20.48.0 - 10.20.63.255, etc.

Create a list of subnets, magic numbers, and anything else you find helpful, and fine-tune it for use on the exam.

1. Prep
   1. Set mental anchors and write lists of subnet masks and bit values
2. Study
   1. Anki Flashcards
      1. These flashcards should help you practice quickly recalling subnet and magic number information
      2. 010 Subnetting.apkg
   2. subnetting.org
      1. When you're sitting on the toilet, waiting for your game to load, or winding down for bed, go to subnetting.org and answer as many questions as you can
         1. Think of it like playing sudoku, just simple mind problems.
      2. Be kind to yourself if you get them wrong. You will make mistakes, and that just means you're learning.
3. Exam time
   1. Write out your list of subnet masks and bit-values on the whiteboard
   2. Feel confident that you've done so much to prepare; you are awesome.

Feel like I missed something, or see something I should fix? Hit me up through this Google Forms Survey, submit an issue on GitHub.
